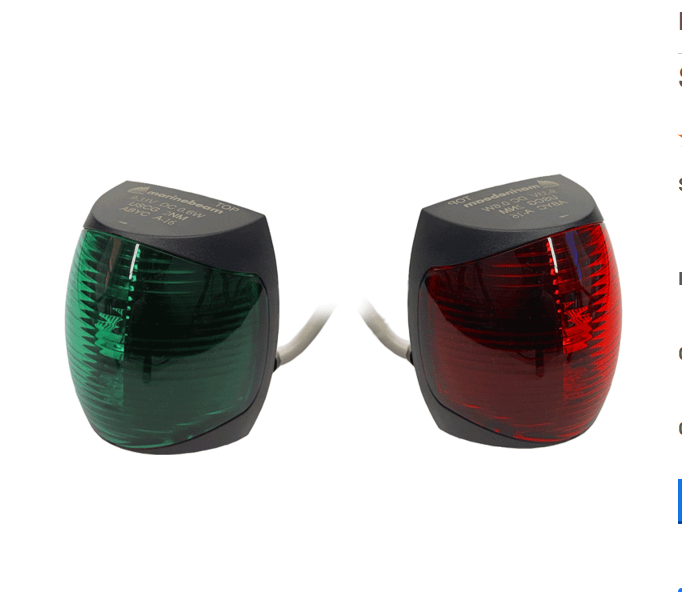

Port & Starboard Navigation Fixtures

Our individual LED sidelights are sold individually.

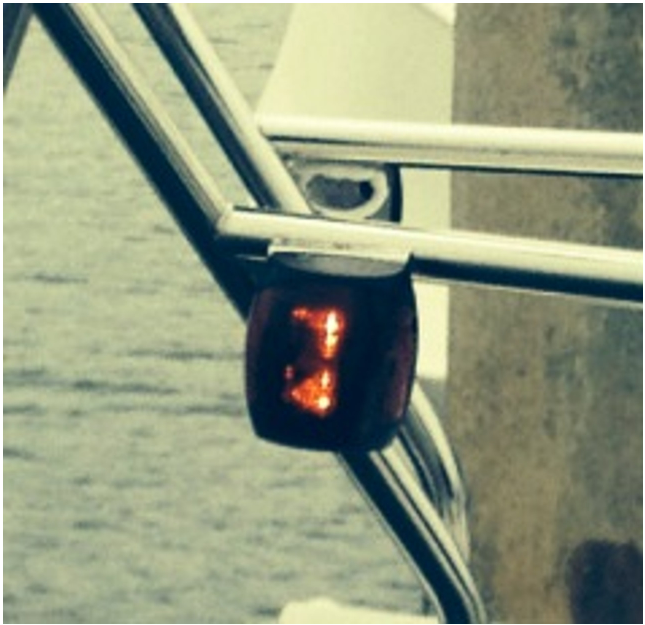

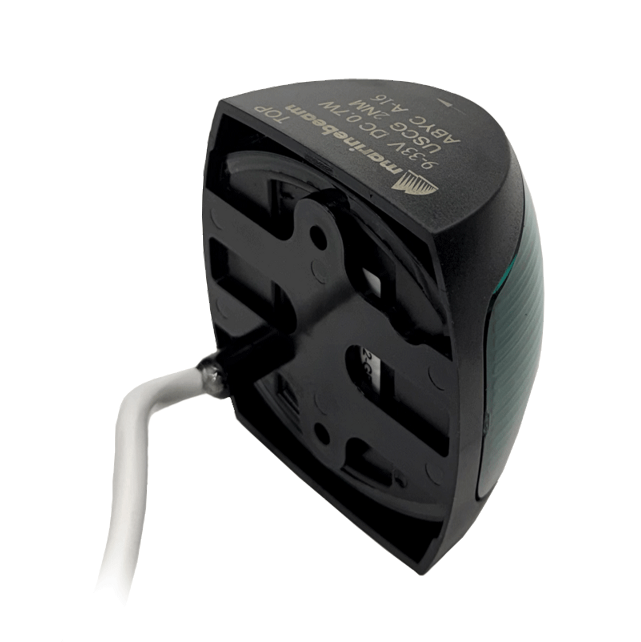

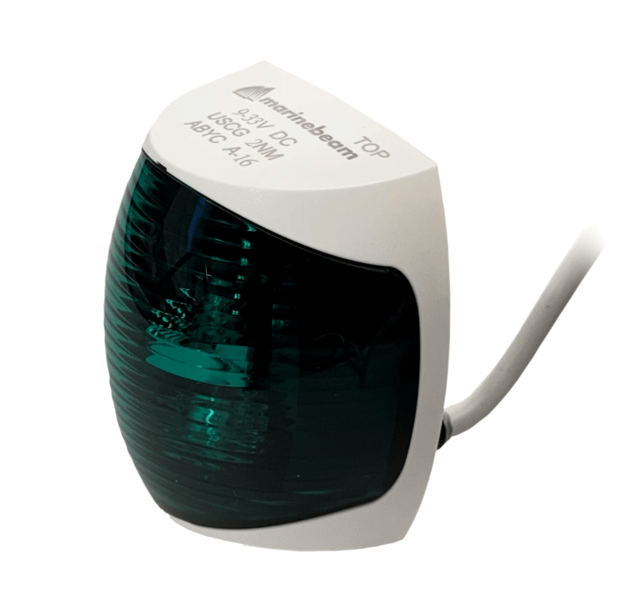

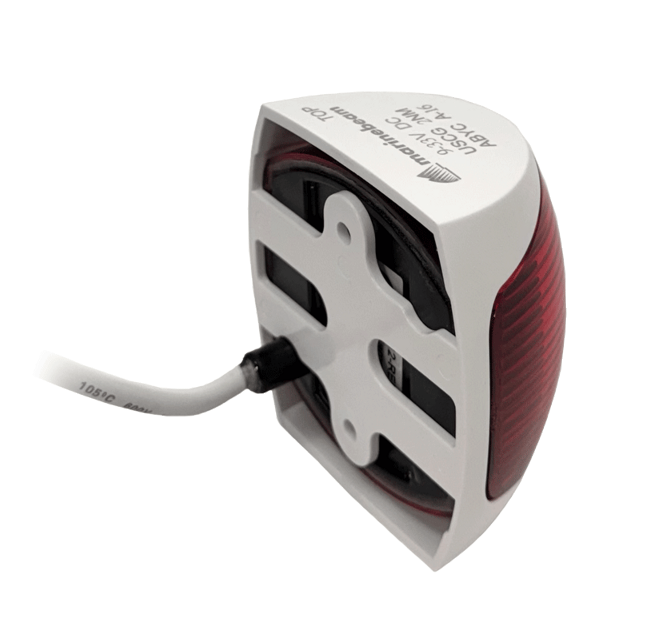

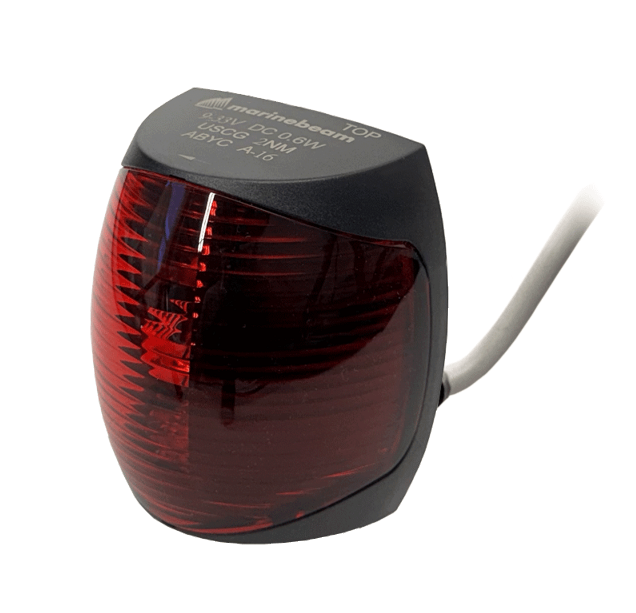

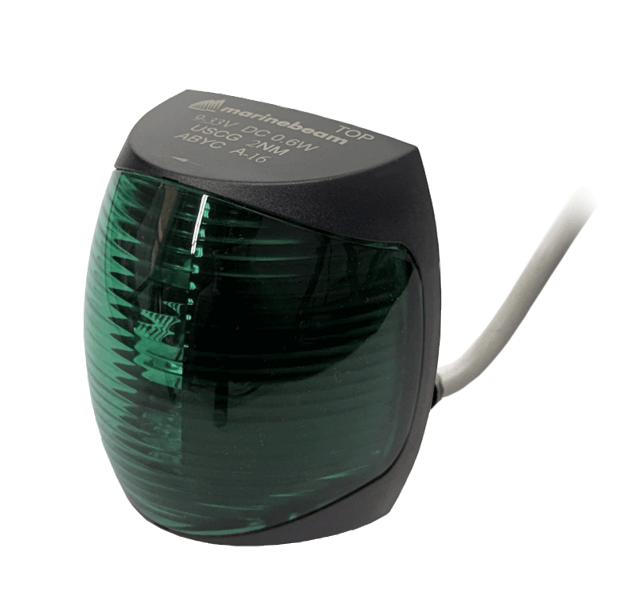

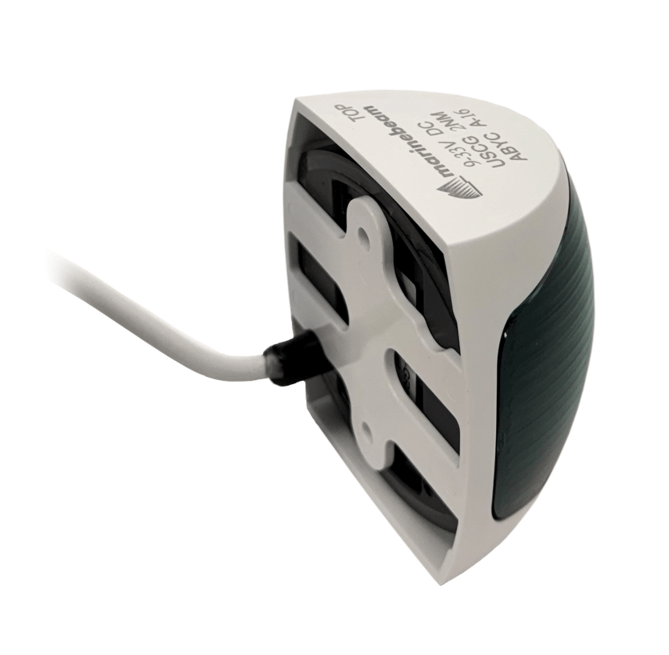

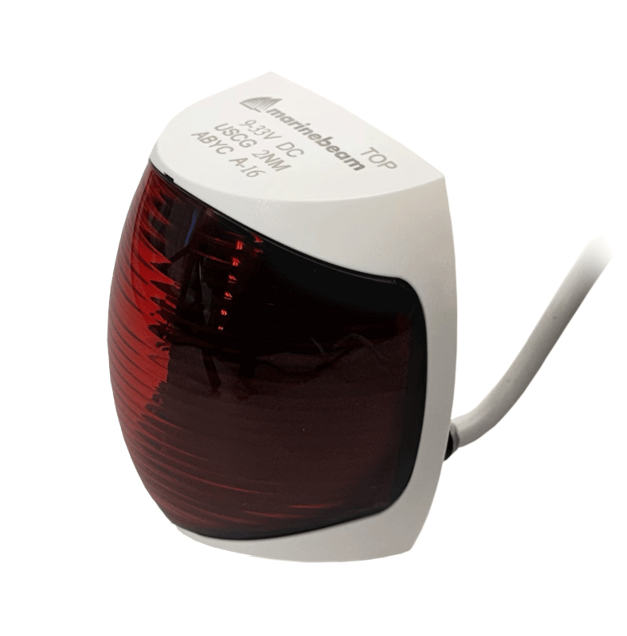

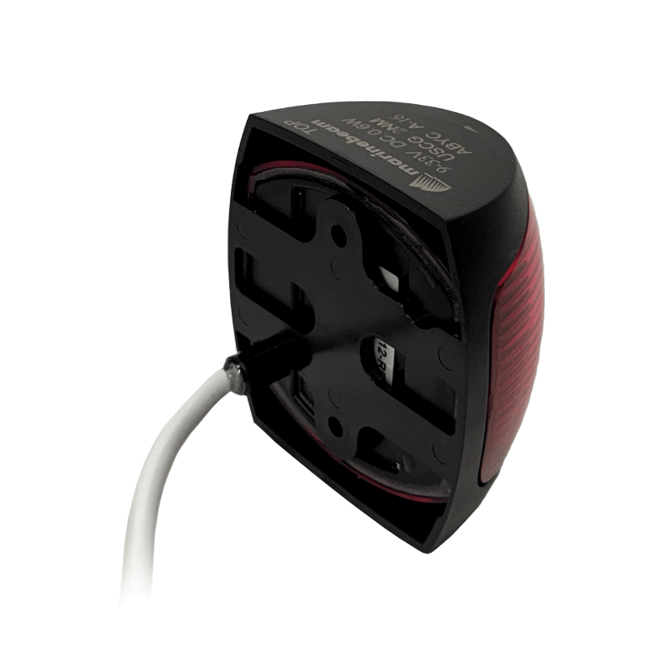

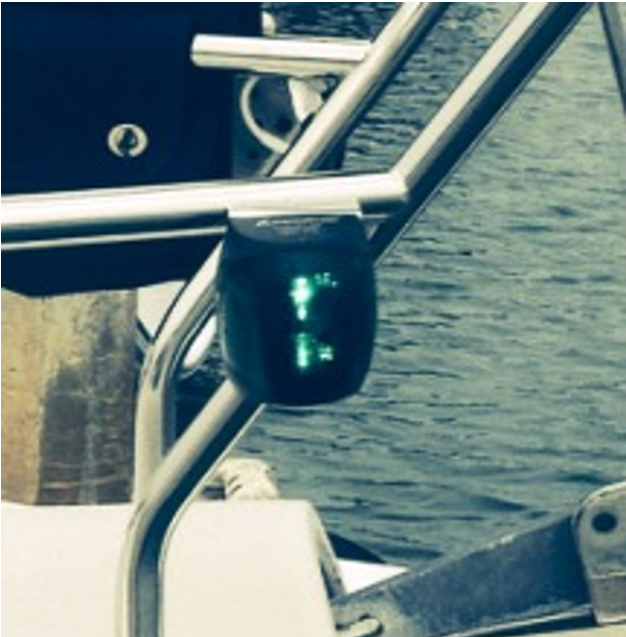

These super-bright, sealed-for-life side-lights are available in either red or green and feature 112.5° “sector-of-angle” suitable for mounting on vertical surfaces in longitudinal plane with the vessel. The UV resistant coloured lense matched to coloured LEDs delivers superior visibility and safety. Includes 2 stainless steel mounting screws and 8 feet of “tinned” 2-wire cable for below-deck connection. USCG/ABYC A-16 Certified for vessels up to 65 feet (20meters). 9-33 Volts DC Constant Current

Coast Guard Certified Navigation Lights

Our Nav Light fixtures are permanently 100% sealed and Waterproof IP-67 and USCG/ABYC certified for power or sailboats up to 65 feet. These brilliant LEDs use only 10% of the power consumed by incandescent lights with the same colour and visibility. They all feature our Constant Current chipset which operates on voltages from 9Vdc  to 33Vdc  for 12 or 24 volt applications. This protects operation from power surges, voltage drop and fluctuations. They won’t fail from vibration, moisture intrusion and will probably outlast the rest of the vessel. Bow and stern running lights combined, use less than ½ amp @ 12 volts or ¼ amp @ 24 volts. They do not emit harmful RF interference EMC certification EN55022, EN61547 and EN60945) so they don’t cause interference with VHF, SSB, headsets or GPS signals.

Specifications

• Voltage: 9-33VDC Constant Current
• Power: 2 Watts
• Visibility: 2NM
• Sector Angle: 112°
• Housing Color: Black or White
• Output Color: Red(Port) or Green(Starboard)
• Ingress Protection: IP67 (fully sealed)
• Approvals: USCG 33CFR183.810, ABYC A-16, EN55022, EN61547 & EN60945
• Dimensions: 3-7/16″ Tall x 3-1/16″ Wide x 2″ Deep

2 Year Warranty
