Nodus Factory

Pad-SX® SX 55 - Adjustable Padeye - Nodus Factory

Pad-SX® SX 55 - Adjustable Padeye - Nodus Factory

Regular price $ 25.93 USD
Regular price Sale price $ 25.93 USD
Sale Sold out
Shipping calculated at checkout.

Pad-SX®- SX 55- Nodus Factory

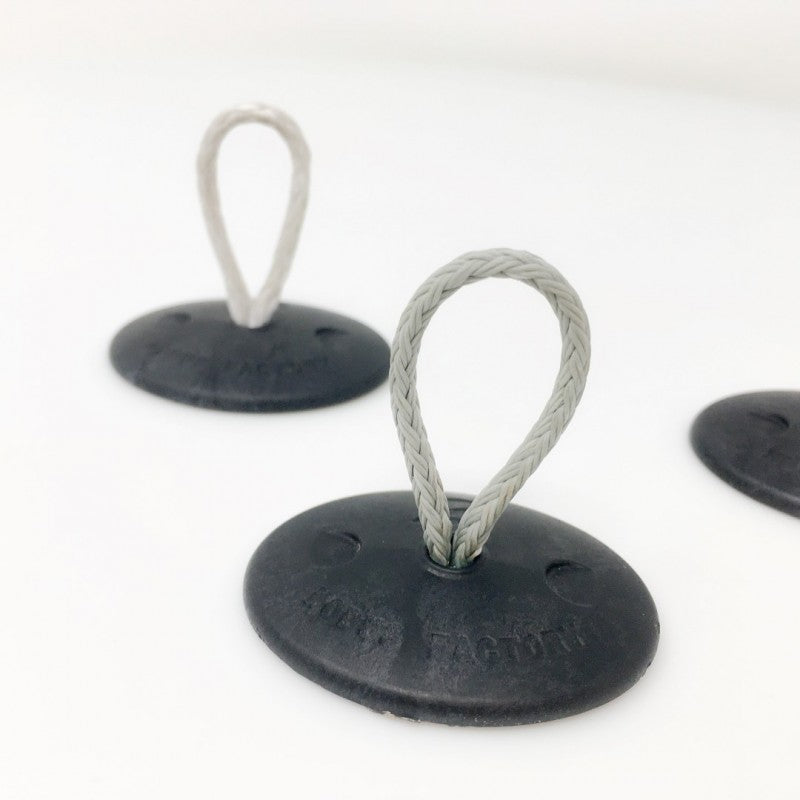

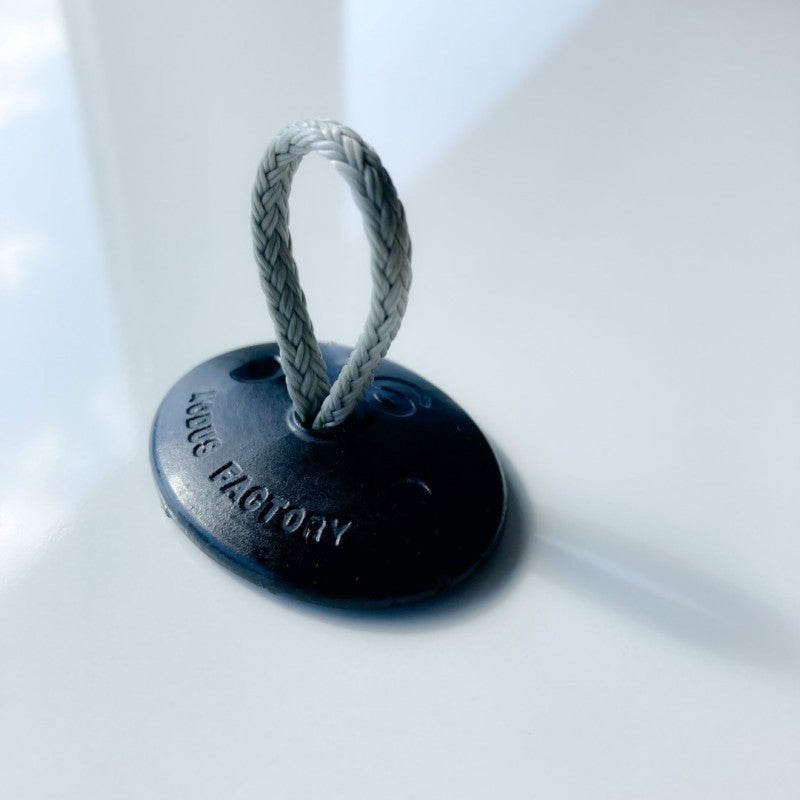

Textile pad eye round to stick on, Nodus-Padeye® SX is the only pad eye with adjustable textile Dyneema® loop.

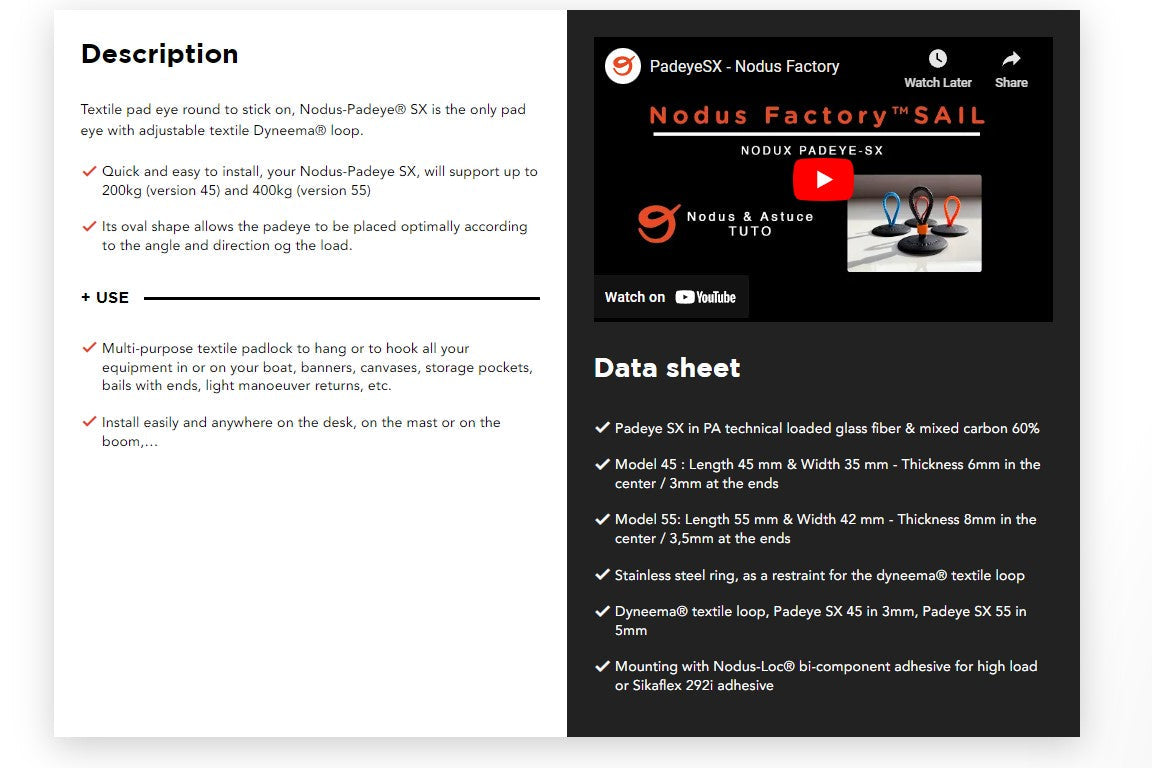

Description

  • Quick and easy to install, your Nodus-Padeye SX, will support up to 400kg (version 55)
  • Its oval shape allows the padeye to be placed optimally according to the angle and direction of the load.

+ USE

  • Multi-purpose textile padlock to hang or to hook all your equipment in or on your boat, banners, canvases, storage pockets, bails with ends, light manoeuvre returns, etc.
  • Install easily and anywhere on the desk, on the mast or on the boom,…



Data sheet

  • Padeye SX in PA technical loaded glass fiber & mixed carbon 60%

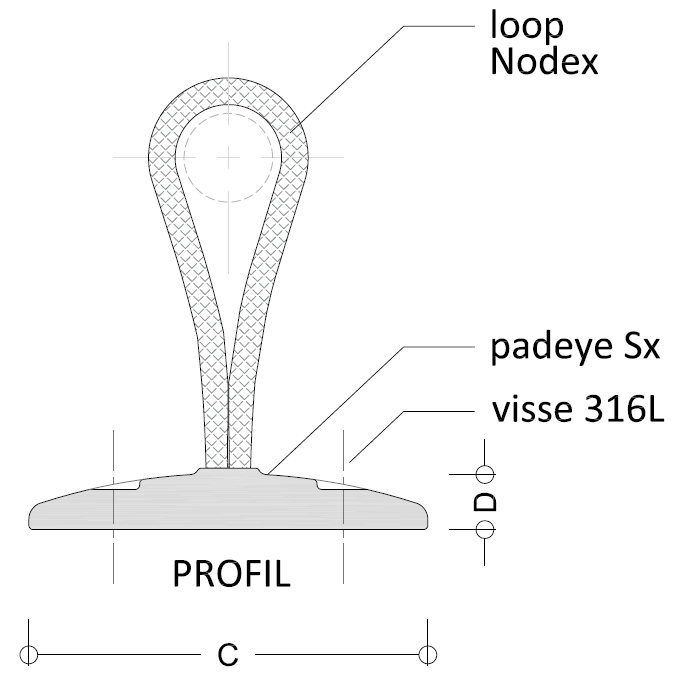

  • Model 55: Length 55 mm & Width 42 mm - Thickness 8mm in the center / 3,5mm at the ends

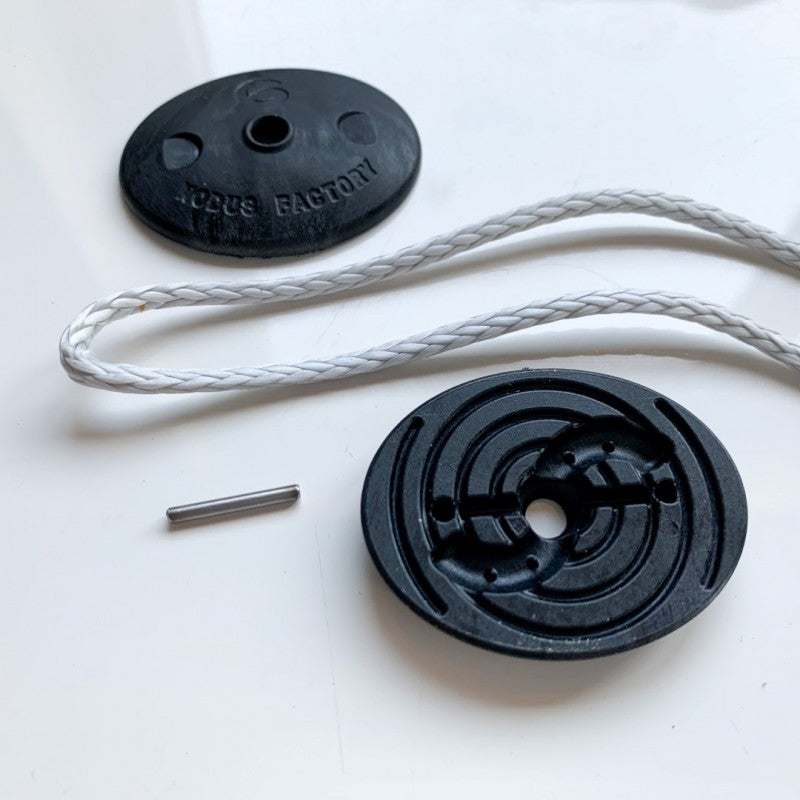

  • Stainless steel ring, as a restraint for the Dyneema® textile loop
  • Dyneema® textile loop, Padeye SX 55 in 5mm
  • Mounting with Nodus-Loc® bi-component adhesive for high load or Sikaflex 292i adhesive



Optional: Nodus Loc® glue - 1 tube (12ml) for 4 to 6 pads

PA / Dyneema® / fibrous bioplastic polyamide (recyclable)

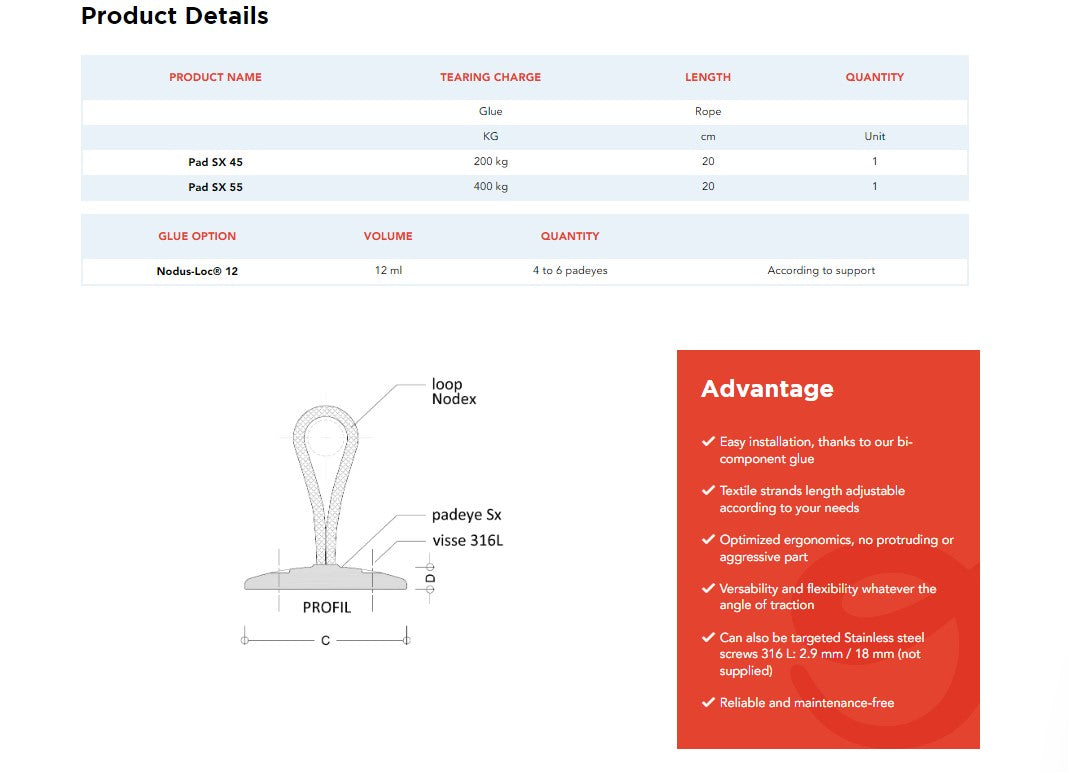

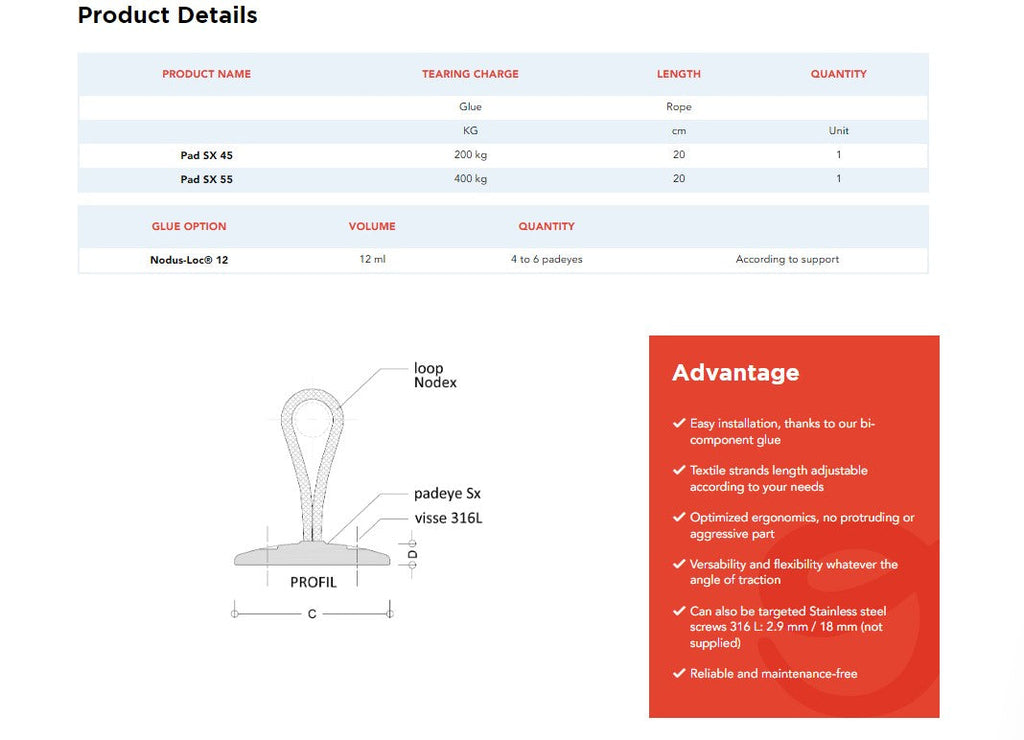

PRODUCT NAME TEARING CHARGE LENGTH QUANTITY
Glue Rope
KG cm Unit
Pad SX 45 200 kg 20 1
Pad SX 55 400 kg 20 1



GLUE OPTION VOLUME QUANTITY
Nodus-Loc® 12 12 ml 4 to 6 padeyes According to support



View full details
